200mm Polyurethane Nylon Bolt Hole Swivel Braked Castor Wheel - 350kg Load Capacity
Pneumatic Wheel:

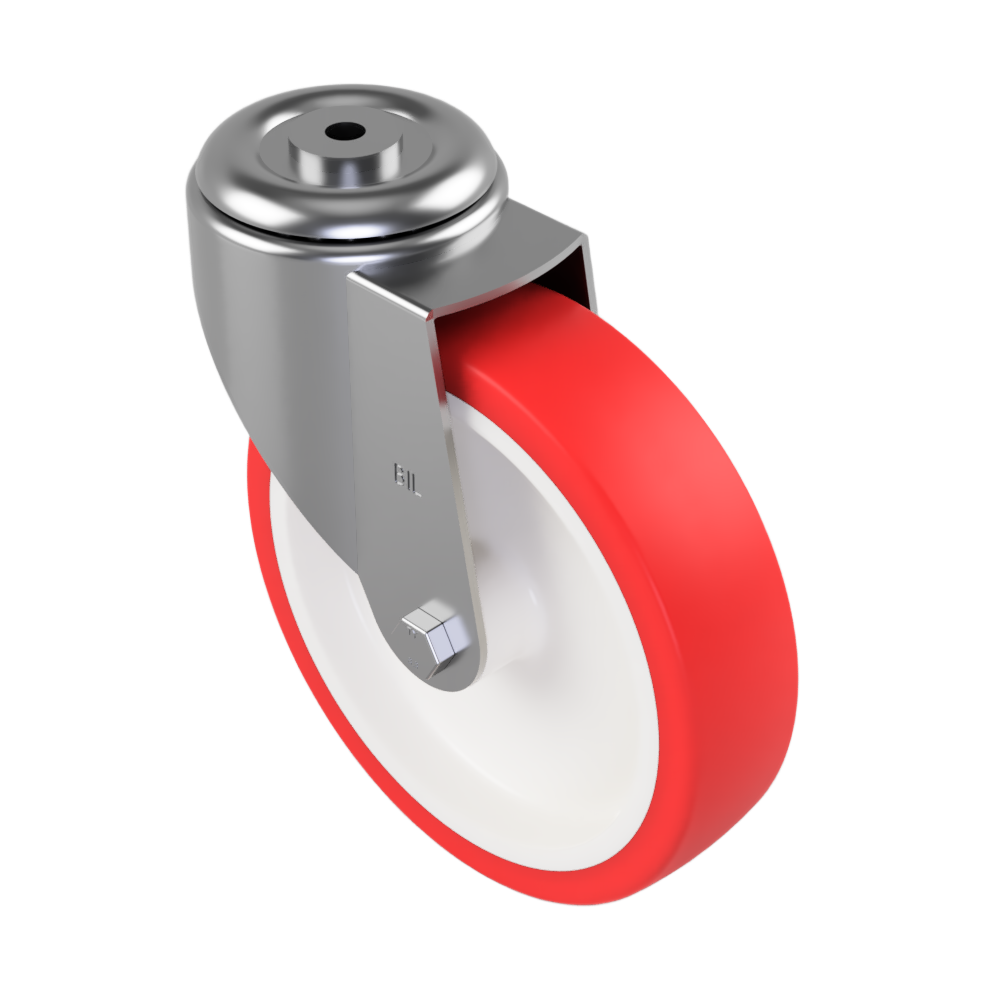

Designed for heavy-duty applications, the 200mm Polyurethane Nylon Bolt Hole Swivel Castor Wheel combines strength, durability, and smooth rolling performance for demanding commercial and industrial environments. It features a robust pressed steel swivel housing with a 12mm bolt hole fixing and a red polyurethane tyre bonded to a white nylon-centred wheel with a plain bore, offering excellent wear resistance, low rolling resistance, and reliable floor protection.
With a 200mm wheel diameter, 48mm tread width, and an overall height of 235mm, this castor is easy to install and built for long-lasting performance. Supporting loads of up to 350kg, it is ideal for heavy-duty trolleys, carts, machinery, production equipment, and other mobile applications requiring dependable manoeuvrability and strength.
| Wheel Diameter (mm) | 200 |
| Load Weight (kg) | 350 |
| Fixing Type | Bolt Hole |
| Bearing Type | Plain |
| Overall Height (mm) | 235 |
| Tread (mm) | 50 |
| Wheel Material | Nylon |
| Tyre Material | Polyurethane |
| Head Diameter (mm) | 90 |
| Fork Thickness (mm) | 3 |
| Swivel Radius (mm) | 168 |
| Suit Fixing Bolt (mm) | 12 |
| Colour | Red |
| Temperature Resistance | -20 °c to +70 °c |
