1200
Max KG
Liftek EST122 Electric Stacker with Wrap-Over Forks, 2.7m Lift Height - 1200kg Capacity
1500
Max KG
Pneumatic Wheel:

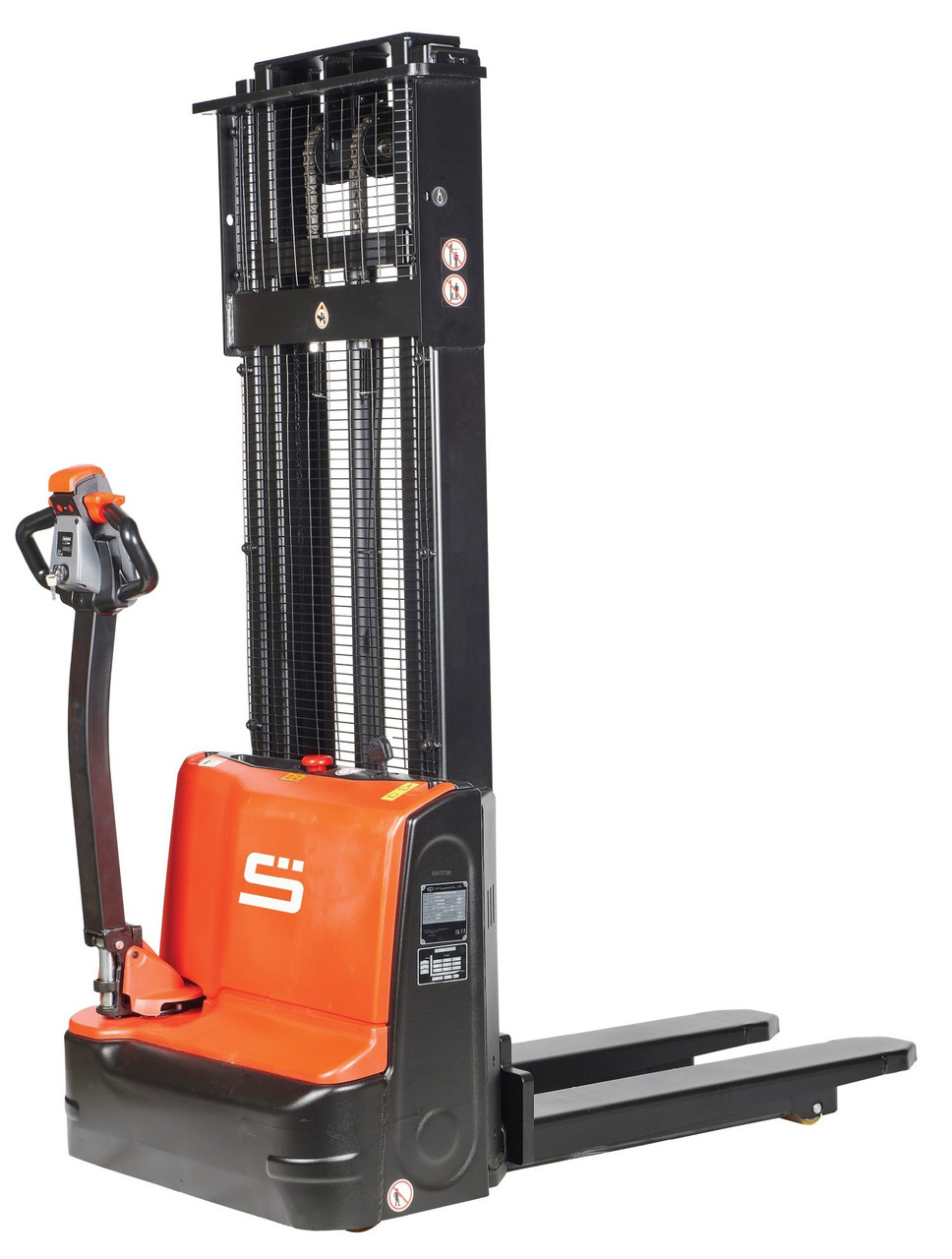

Liftek DS3 Electric Pedestrian Stacker is a reliable and easy-to-use solution for efficient pallet handling in warehouses, retail environments, and light industrial applications. Designed for safe operation in compact spaces, it provides smooth lifting and dependable performance, making it ideal for everyday material handling tasks.
Its compact design allows for excellent manoeuvrability, while the stable construction enhances operator confidence when stacking and transporting loads. The maintenance-free lithium-ion battery and integrated charger minimise downtime, helping to maximise productivity throughout the working day.
| O/A length (mm) | 1727 |
| O/A width (mm) | 834 |
| O/A height (mm) | 3532 |
| Min. lift height (mm) | 2930 |
| Max. lift height (mm) | 3018 |
| Fork length (mm) | 1150 |
| Fork width (mm) | 170 |
| Steering wheel material | Polyurethane |
| Fork wheel material | Polyurethane |
| Fork wheel Ø (mm) | 74 |
| Fork wheel width (mm) | 88 |
| Steering wheel width (mm) | 55 |
| Steeringwheel Ø (mm) | 190 |
| Battery voltage (V) | 24 V |
| Battery capacity (Ah) | 40 Ah |
| Moving speed with load (km/h) | 4.0 |
| Moving speed without load (km/h) | 4.5 |
| Weight (kg) | 530 |
| Turning radius (mm) | 1470 |
| Distance between forks (mm) | 570 |
| Lead Time | 3-5 Working Days |
| Wheel Type | Solid |
| Handle Type | Loop Handle |
| Frame Material | Steel |
| Max Load Capacity (kg) | 1500 |
